Laser Range Sensor Module 10-180cm
Price
৳1,620
/Pcs
Share
Top Selling Products
Features:
- ・940nm laser classified as class 1 under operation condition by IEC 60825-1:2014-3rd edition
- ・Small ceramic package(20×13.2×2.0mm)
- ・Long range absolute range measurement up to 1.8m within 5％ accuracy at indoor
- ・Reported range is independent of the target reflectance
- ・Operates in high infrared ambient light levels
- ・Advanced optical cross-talk compensation
- ・High speed ranging MAX 30ms
- ・Standard solder reflow compatible
- ・No additional optics
- ・Single power supply
- ・Txd interface for device control and data transfer
- ・High-speed AF
- ・Continuous AF for video
- ・User detection for Personal Computers/
- ・Laptops/Tablets
- ・Robotics (obstacle detection)
- ・White goods (hand detection in automatic
Specifications:
- Ranging Range 100 ～ 1800mm
- VCC 3 ～ 5V
- ICC_VDD 35mA
- Topr － 20 ＋ 70 °C
- Tstg － 40 ＋ 85 °C
- Communication protocol
- Bits per Second:9600
- Data Bits : 8
- Parity : None
- Stop bits : 1

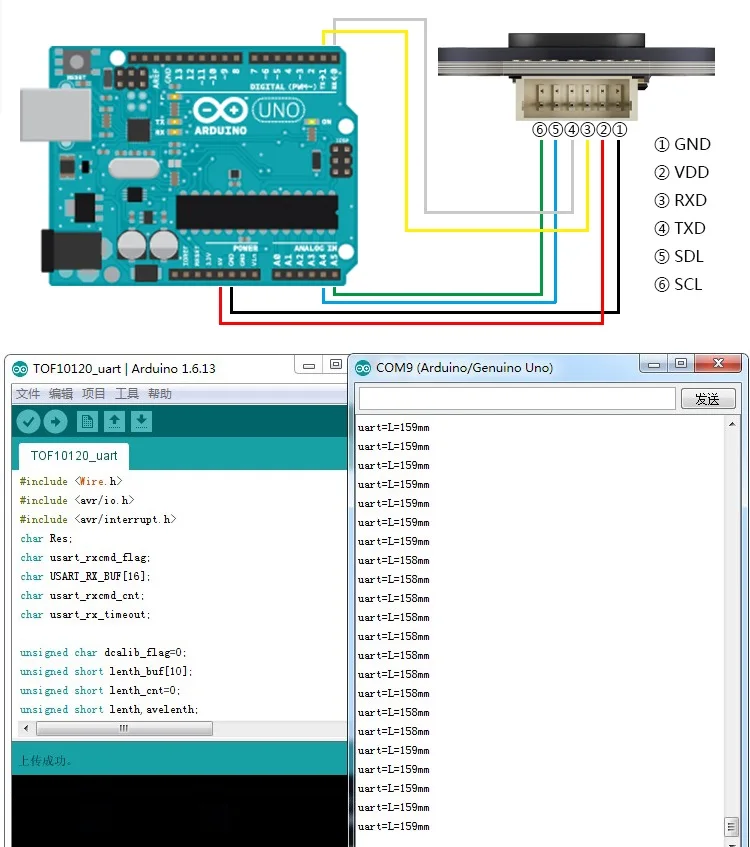

Flow Control :
- ①GND Black
- ②VCC Red
- ③RXD Yellow
- ④TXD white
- ⑤SDA blue
- ⑥SCL purple
Package Included:
- 1pcs x Laser Range Sensor Module 10-180cm
